CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment

  • 1
  • 2

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Type : Open type

Roller Diameters : 150~450mm

Roller No. : Single roller

Roller Weight : 24.8~310kg

Materials : Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Contact Now

CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment

Description:

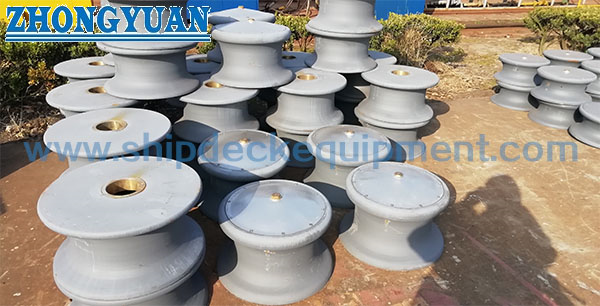

CB/T 3861 type B casting steel roller button is similar as NS 2585 roller. It is made of casting steel and stainless casting steel is also available. The center bearing is either stainless steel or copper or bronze. It is very easy for maintenance and easy to add grease oil to keep the roller always moving smoothly.

Main Technical Specification:

1. Type: Open type

2. Roller Diameters: 150~450mm

3. Roller No.: Single roller

4. Roller Weight:24.8~310kg

5. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

8. Can be Customized

Main Technical Parameter:

Roller
Diameter
D		 SWL
KN		 Maximum Diameter of cable Size Weight
kg
PP Rope SWR
Tensile strength of
steel wire rope
1770MPa, 6x37		 D1 D2 H h d S k K1
150 127 32 16 240 90 154 130 80 5 9 7 24.8
200 191 40 20 310 115 186 162 100 10 8 49.3
250 274 45 24 380 135 230 202 120 6 92
300 323 50 28 440 155 255 226 130 7 13 10 127
350 431 55 34 500 175 271 242 150 168
400 559 65 40 560 185 307 278 160 14 12 252
450 617 80 44 630 210 316 287 180 310

CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment

Drawings of CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment

CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment

CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment
