Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment

  • 1
  • 2

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Technical Standard : GB 2026

Rope Diameter : ⌀35, ⌀50, ⌀70mm

Weight : 1.33 to 11.2kg

Materials : Casting Copper, Casting Bronze, Casting C-Mn Steel, Casting Stainless Steel, Nodular Cast Iron

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc

Contact Now

Casting Steel Bolted Type Mooringl Kevel Ship Mooring Equipment

Description:
Casting Steel bolted type mooring kevel is used in workboat berths and marines around the world. They are created with the same care,modern design methods and choice of materials as their larger cousins. Cast iron bollard and cast steel bollard arewidely used around the world.

Main Technical Specification:

1. Technical Standard: GB 2026

2. Rope Diameter: ⌀35, ⌀50, ⌀70mm

3. Weight: 1.33 to 11.2kg

4. Materials: Casting Copper, Casting Bronze, Casting C-Mn Steel, Casting Stainless Steel, Nodular Cast Iron

5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

7. Can be Customized

Main Technical Parameter:

Maximum Diameter
of Hemp Rope		 L L1 L2 A A0 B B1 B2 B3 H H1 H2 H3 δ r r1 r2 r3 Weight
Kg		 Material
35 200 120 71 56 88 88 56 32 30 50 41 16 9 7 16 12 8 9 1.33 Cast copper
50 330 200 114 90 150 140 90 50 46 76 63 23 10 8 25 20 12 15 3.57
75 440 250 160 110 190 170 110 64 60 95 80 27 11 9 30 25 16 18 8.45
30 200 120 65 56 88 88 56 32 30 53 44 19 12 10 16 12 8 9 1.7 Cast steel
50 330 200 106 90 150 140 90 50 46 80 67 27 14 12 25 20 12 15 5.9
75 440 250 150 110 190 170 110 64 60 100 85 32 16 14 30 25 16 18 11.2

Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment

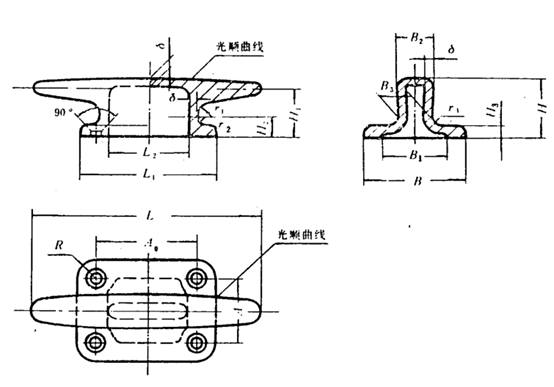

Drawing of Casting Steel Stainless Steel Bolted Type Mooringl Kevel Ship Mooring Equipment

Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment
