Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment

Name: Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment
Brand: Zhongyuan
Price: 1 USD

China Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment wholesale

Brand Name : Zhongyuan

Model Number : Standard and Customized

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

Place of Origin : China

MOQ : 1 Set

Price : As per quotation

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Delivery Time : As per offer

Packaging Details : Pallet or Customized

Technical Standard : GB 556-65

Nominal Diameters : 75 to 225mm

Material : Mild Steel; Stainless Steel

Weight : 5 to 95kg

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA

Contact Now

Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment

Description:

GB556-65 welded inclined bollard has two types :DH type and SH type .DH type bollard is single base plate welded oblique post bollard, and SH type is double base plates welded oblique post bollard.SH type and DH type welded inclined bollards are produced in line with standard GB556-65.The design of inclined pillar of this product can help prevent hawser released when the ship sways. Steel wire and hemp rope are applicable to this bollard. Material, dimension, surface coating and other optional factors are determined by customers.

Main Technical Specification:

Technical Standard: GB 556-65
Nominal Diameters: 75 to 225mm;
Material: Mild Steel; Stainless Steel;
Weight: 5 to 95kg;
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

Max. Diameter of Wire Ropes	Max. Circle of Hemp Ropes	D	D1	L	B	A	A1	H	t	Weight (kg)
8.7	75	50	65	310	100	205	166	170	6	5
11.5	90	75	90	430	125	296	238	215	7	11.5
13.5	100	100	115	540	160	364	290	240	7	19.2
15.5	125	125	140	660	170	458	380	295	8	25.2
17.5	150	150	165	750	200	525	432	348	8	33.3
19.5	170	175	190	850	235	630	524	394	9	49.2
22.5	200	200	220	950	270	676	564	436	10	68.8
26.0	225	250	270	1150	340	765	640	540	12	95

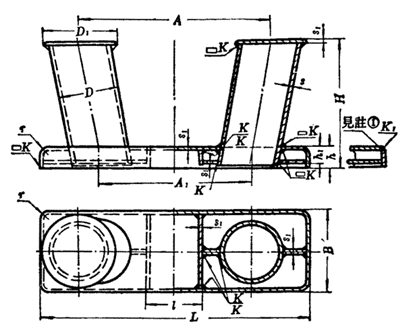

Drawing of Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment
