Chain DIN 763 With German Standard

Name: Chain DIN 763 With German Standard
Brand: Zhongyuan
Price: 1 USD

Brand Name : Zhongyuan

Model Number : Standard and Customized

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Place of Origin : China

MOQ : 1

Price : As per quotation

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Delivery Time : As per offer

Packaging Details : Pallet or Customized

Type : Cranked Link Chain

Material : Alloy Steel, High Tensile, Heat Treated.

Surface Treatment : Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated

Structure : Flash Butt Welded Chain

Feature : Heat Resistant

Chain Size : 2mm to 32mm

Color : Self Color, Red ,Green, or as to your request

Application : Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Contact Now

Chain DIN 763 With German Standard

Description:

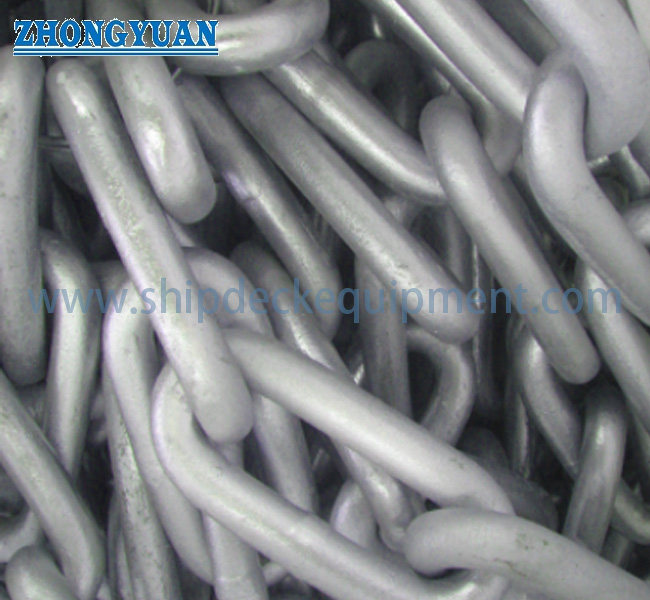

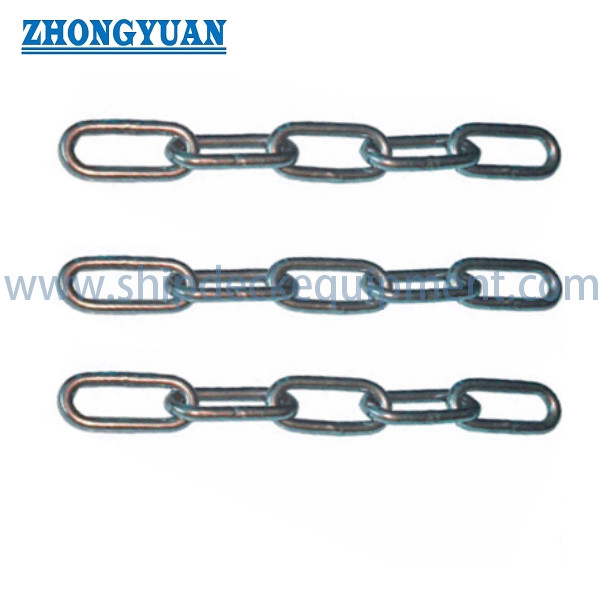

Chain DIN 763 is a kind of welded long link chain. Long link chain should never be used as a sling in either "basket" hitch or chokes configuration. Chain din 763 is non-calibrated and tested. The chain is made to DIN 763 and EN standards, with links side welded for extra strength and quality tested. The chain is suitable for all general purposes, engineering, industrial, agricultural and marine applications etc.The protective finishes of the chain din 763 are zinc plated, black painted, hot dip galvanized, powder coated, or as your request.

Main Technical Specifications:

Type:Cranked Link Chain
Material:Alloy Steel, High Tensile, Heat Treated.
Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
Structure:Flash Butt Welded Chain
Feature:Heat Resistant
Chain Size:2mm to 32mm
Color: Self Color, Red ,Green, or as to your request
Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Main Technical Parameters:

DIN763 A/C Link Chain		Inside Length(t)		Outside Width(b)		Working Load	Test Load	Breaking Load	Weight Per M
mm	±mm	mm	±mm	mm	±mm	kg	n	n	kg
2.0	0.5	22	1.0	8	0.4	25	800	1250	0.06
2.5		24	1.1	10	0.5	40	800	2000	0.10
3		26	1.2	12	0.6	55	1050	3200	0.15
3.5		28	1.3	14	0.7	80	1540	3850	0.20
4		32	1.5	16	0.8	100	2500	6500	0.27
4.5		34	1.7	18	0.9	128	3000	8000	0.35
5		35	1.8	20	1.0	160	4000	10000	0.43
5.5		38.5	1.8	22	1.1	195	4200	10500	0.52
6		42	2.0	24	1.2	200	5000	12000	0.63
7		49	2.5	28	1.4	300	7500	19000	0.86
8		52	2.5	32	1.6	400	10000	25000	1.10
8.5		56	2.8	34	1.7	460	10200	25500	1.25
9		59	3.0	36	1.8	530	10500	32000	1.41
10	1	65	3.2	40	2.0	630	16000	40000	1.75
11		72	3.4	44	2.0	790	15800	47500	2.11
12		78	3.6	48	2.3	940	18000	56500	2.55
13		82	4.0	52	2.5	1000	25000	63000	2.95
16		100	5.0	64	3.2	1600	40000	100000	4.45
18		113	5.2	70	3.2	2120	42300	127000	5.65
19		119	5.6	72	3.4	2370	47300	142000	6.25
20		120	6.0	75	3.8	2500	50000	160000	7.00
22		127	6.0	82	4.0	3170	63300	190000	8.55
25		140	6.6	85	4.2	4090	81700	245000	10.90
28		152	7.0	96	4.7	6000	120000	300000	13.90
32		171	7.8	108	5.2	8000	160000	400000	18.20
